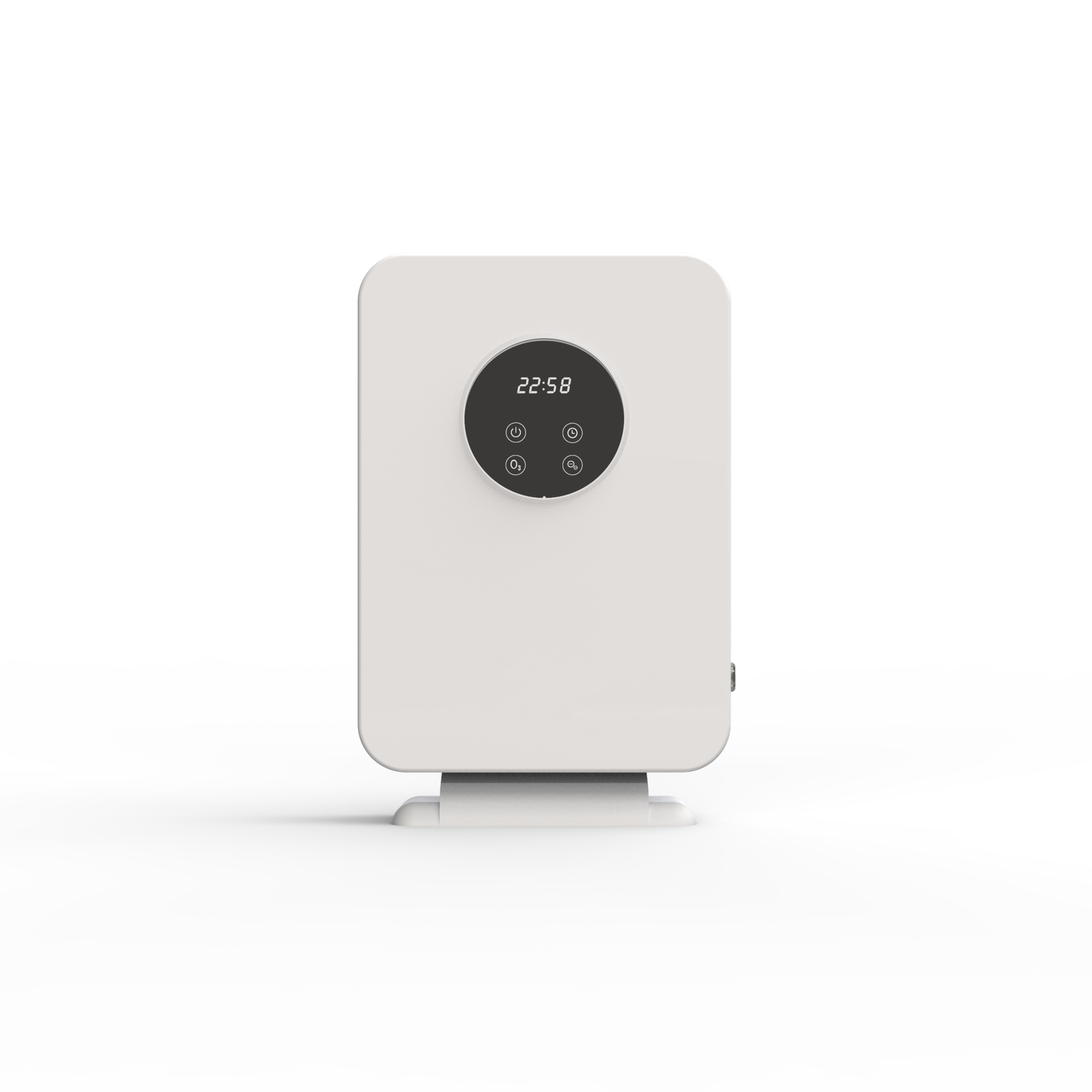

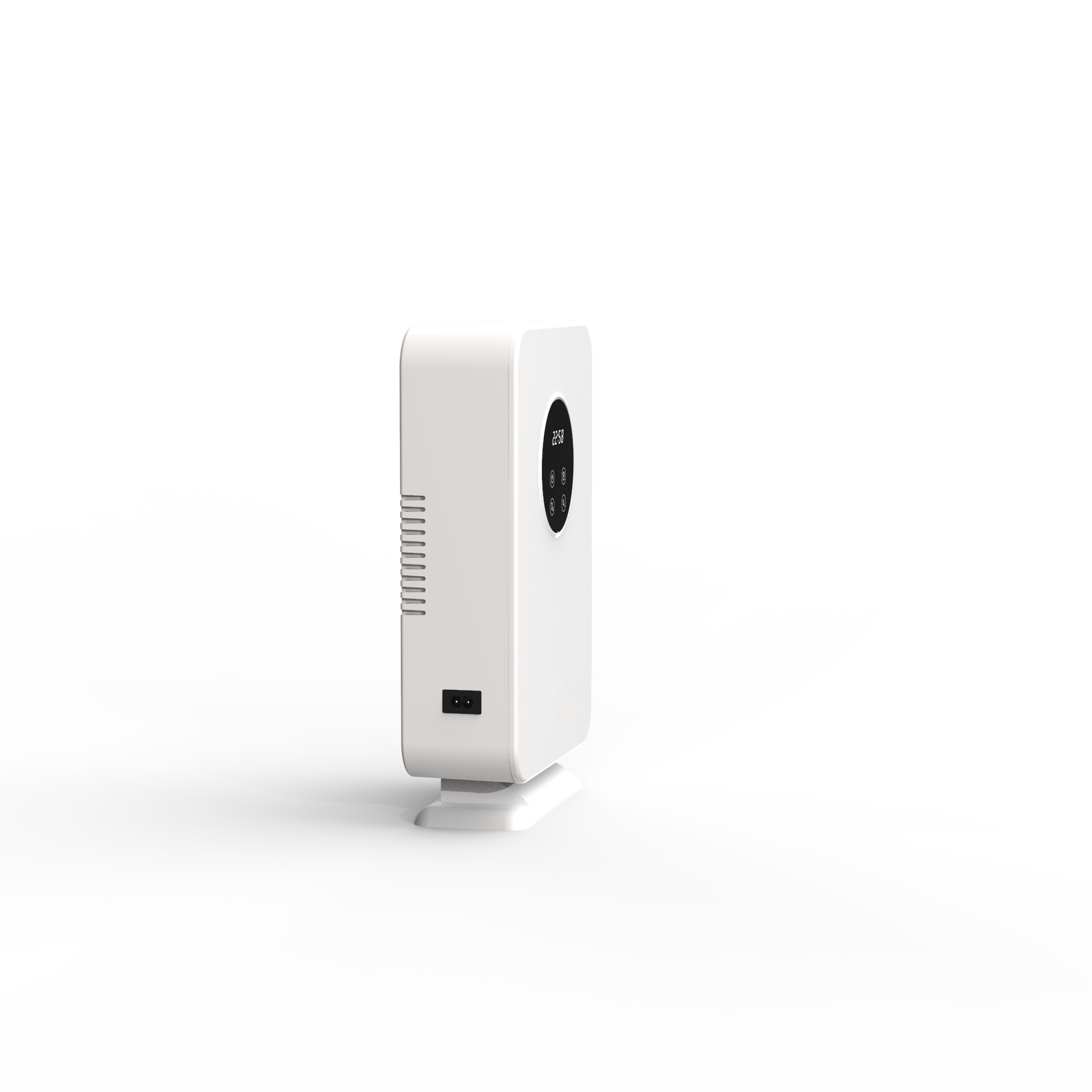

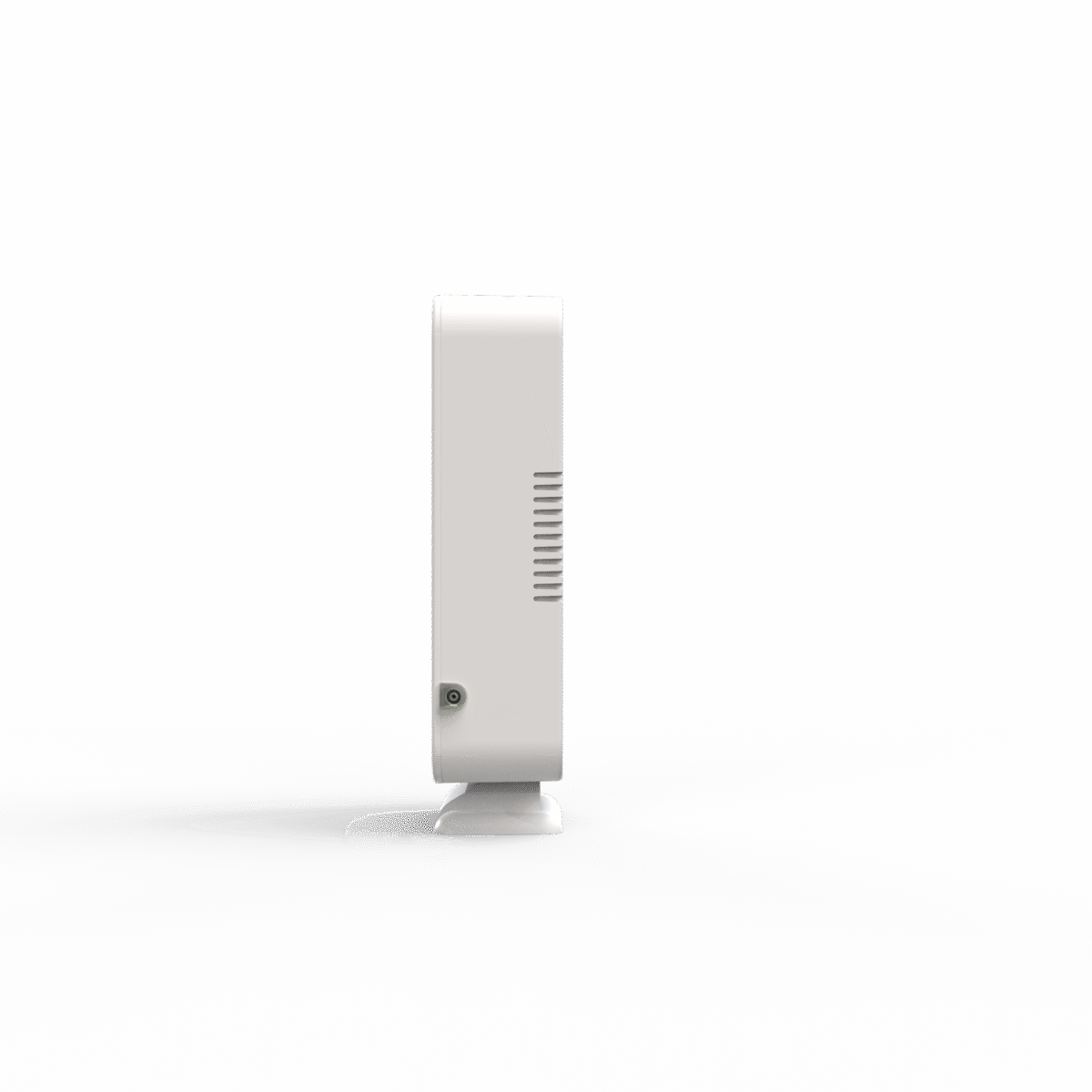

Anion & Ozonation Purifier – OZ-3 Plus

Model: OZ-3 Plus | 500mg/h Ozone Output | Advanced OEM O₃ Generator & Air Disinfection Machine

Disinfect your water, Kill bacteria , Breathe cleaner air. Eat safer food. Live healthier.
Introducing the OZ-3 Plus — a high-efficiency 500mg/h ozone generator and anion air purifier designed for dual-purpose sterilization: purify your indoor air and disinfect your food and water.

Perfect for homes, restaurants, offices, clinics, salons, and more, this multi-functional disinfection device delivers powerful ozone and negative ion purification in one sleek unit.

🔹 Key Features:

• ✅ High-Efficiency Ozone Output (500mg/h)
  Eliminates bacteria, viruses, mold, and pesticide residue from fruits, vegetables, meat, and water.

• ✅ Anion Air Purification
  Releases negative ions (anions) that neutralize airborne particles like dust, allergens, smoke, and odors — improving respiratory health and indoor air quality.

• ✅ Advanced Disinfection Technology
  Utilizes O₃ (ozone) to break down harmful chemicals and microbes at the molecular level — chemical-free and environmentally friendly.

• ✅ Multifunctional Use
  Suitable for air purification, food sterilization, water disinfection, and odor removal in homes, kitchens, pet areas, salons, and medical environments.

• ✅ Smart Timer Control (5–60 minutes)
  Flexible timer settings let you set it and forget it, ensuring safe and accurate disinfection cycles.

• ✅ Compact & Portable Design
  Lightweight and easy to operate anywhere – just plug in and start purifying!

• ✅ OEM Grade with Durable Build
  Built for consistent performance with high-quality ABS plastic and internal components.

Function Characteristic

1. Ozone Sterilization:

Deodorizer: Ozone can kill microbes, inhibits Fungus,anti virus.

Food Cleanser: Ozone can disintegrate and decompose the pesticide,hormone and odor, which remains on the surface on food, such as fruit, vegetables, meat and seafood, etc.

Air Purifier: Remover Odor and Foul Smell.

Water Treatment: Over 50% more efficient at breaking through bacteria membranes compared to chlorine.

 2.  Aion Air Purification:

Negative lon Air Purifier: Anions can remove dust and purify the air.

Safety instruction

1. Disconnect the power before cleaning or repairing.
2. When this product is used to Sterilize water, place it above water surface to avoid water from flowing in.
3. Do not use it in high temperature environment (above 42ºC) or places with high humidity or high oil content. It will reduce the effectiveness or shorten the usage life of the product.

4. Do not throw or cause any impact on the unit.(Do not block the ozone outlet as it will affect the air ventilation.)

5. When this machine is used in a unventilated room to sterilize the air (ozone air sterilization), please enter the room after the machine stops working for 30 minutes. People leave the room during ozone working !

Technical Parameters

Packing list

Operation Instructions

Use in Water: (Timer: 5-30min)

Step1: Connect the pipe end with Ozone outlet and the other pipe end with aeration stone correctly. To let the Ozone go out, put the aeration stone on the bottom of the water.

Step2: Plug in the power cord, connect the machine to the power outlet.the light will blink in correspondence button ON/OFF . the machine is powered.

Step3:Turn on/off the appliance by pressing down the button ON/OFF . Turn on machine, the ON/OFF button light will bright,display will light up indicating the working time 00:00.
Turn off machine,the light on button ON/OFF will blink.Step4: Touch Timer  button slightly, to choose the working time 5,10,15,20,25,30,40,50,60 minutes.

Step5:Touch O3 button slightly, to start or stop ozone sterilization,ozone start working, timer display will begin the countdown and O3 button light will bright.

Use in Air: (Timer: 15-30min)

Step1: Plug the power cord. (No need to link the aeration stone and pipe.)

Step2: Plug in the power cord, connect the machine to the power outlet. the white light will blink in correspondence button ON/OFF , the machine is powered.

Step3:Turn on/off the appliance by pressing down the button ON/OFF . Turn on machine, the ON/OFF button light will bright,display will light up indicating the working time 00:00.
Turn off machine,the light on button ON/OFF will blink.

Step4: Touch Timer  button slightly, to choose the working time 5,10,15,20,25,30,40,50,60 minutes.

Step5:Touch O3 button slightly, to start or stop ozone sterilization,ozone start working, timer display will begin the countdown and O3 button light will bright.

Step6:Touch Anion button slightly, to start or stop anion air purification,anion start working, timer display will begin the countdown and anion button light will bright.

Machine Wall-mounted Instructions

Step1:use the strong sticker stick on the smooth and clean wall(ceramic,metal or glass)make sure the sticker adhere to the wall fully.

Step2:Put screw on the strong sticker,then put machine on the screw.

Stone Shelf Wall-mounted Instructions

Step1:the stone shelf is with strong sticker ,stick it on the smooth and clean wall(ceramic,metal or glass)make sure the sticker adhere to the wall fully. then put stone on the shelf.

Example of Application

FAQ

What is Ozone?
Ozone (03) is a highly charged form of the oxygen (02) that we breathe.  Outdoors, ozone has been produced for millions of years. At ground level, 03 acts as an oxidizer to keep the air smelling fresh. In the upper atmosphere, ozone acts as a protective layer that partially shields the earth from the sun’s UV rays. Life on earth as we know it could not exist without 03.
This third oxygen atom is loosely attached,unstable and seeks out pollutants. It will then release and oxidize them on contact.

How does the Ozone Purifier create ozone?
The machine utilize electricity to create a corona discharge which duplicates the effect of lightning. The 02 molecule is split, which then combines with other 02 molecules to createthe 03 molecule, or ozone.

What is ozone half-life?
Under standard conditions (21ºC, 1 bar) the half-life of ozone gas is 20 minutes.Dissolved ozone half-life is 20 minutes at pH6, 15 minutes at pH7 and 5 minutes at pH 8. The main factor which reduces ozone half-life is higher temperature pressure and velocity.

What is air ionizer?

An air ionizer purifies the air in a room by electrically charging air molecules.Many air purifiers use fans and filters to remove contaminants from the air. Air ionizers use ions to remove particulates, microbes, and odors from the air. Air ionizers make the air in a room healthier for people to breathe, especially for people suffering from allergies, asthma, and other respiratory- related ailments. What is an air ionizer? Essentially, it is a life-saver for anyone who uses one.

What does an ionizer do?

Air ionizers rely on the chemical properties of ions. An ion is a negatively or positively charged particle.
What does an ionizer do? Air ionizers create negative ions using electricity and then discharge them into the air.
These negative ions attach to positively charged particles in the room, such as dust, bacteria,pollen, smoke, and other allergens. The positively charged particles and negative ions bond together to create dense dirt particles that cannot float in the air. These heavier dirt particles fall to the ground and wait to be swept up at a later time. Some particles might fall onto other surfaces in the room, such as television screens computers, countertops, and sofas. Homeowners can easily lean these surfaces by dusting or wiping them off with a rag.

How long will the product last?
The machine is made of the highest quality component material and superior craftsmanship that will allow you to enjoy it for 10000-15000 hours.

✅ Ideal For:

• Home kitchens & living rooms

• Restaurants, cafés, and hotels

• Food vendors & juice bars

• Hospitals, clinics & labs

• Pet areas & salons

• Offices & workspaces
