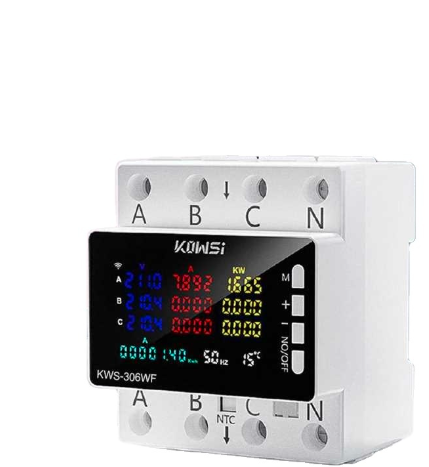

KWS-306WF 80A 3 Phase WiFi Tuya Energy Meter Din Rail Electric Monitor AC85-290V Smart Switch Voltage Current Leakage Protection G53
KWS-306WF 80A 3 Phase WiFi Tuya Energy Meter is a smart DIN rail electrical monitor and protection switch designed for three-phase systems. With AC 85–290V voltage support and up to 80A current capacity, it provides convenient monitoring of voltage, current, energy consumption, and other electrical parameters. Its WiFi and Tuya compatibility enables smart monitoring and control through a compatible app, while built-in protection functions help guard against overvoltage, undervoltage, overcurrent, and leakage conditions. Ideal for homes, offices, shops, workshops, and commercial electrical panels.
Smart Shopping Event
Hurry and get discounts on all Smart devices up to 10%
Sale_coupon_15
₦85,900.00
Description
The KWS-306WF 80A 3 Phase WiFi Tuya Energy Meter is a smart electrical monitoring and protection device designed for modern homes, offices, workshops, commercial installations, and other three-phase electrical systems. Combining energy monitoring, electrical protection, and WiFi smart-control functionality in a compact DIN-rail-mounted unit, it provides a convenient way to monitor and manage electrical power remotely.
With support for three-phase AC systems, an operating voltage range of approximately AC 85–290V, and current handling up to 80A, the KWS-306WF is designed to provide real-time visibility into electrical parameters while adding protection against selected abnormal electrical conditions.
Its WiFi connectivity and Tuya smart platform compatibility allow users to monitor the electrical system through a compatible Tuya/Smart Life application, depending on the device’s configured version and supported functions.
Key Features
Three-Phase Energy Monitoring
Designed for three-phase electrical installations, the KWS-306WF can monitor important electrical parameters and energy consumption, helping users understand how their electrical system is performing.
Depending on the supported configuration, monitored parameters may include:
- Voltage
- Current
- Power
- Energy consumption
- Electrical frequency
- Other electrical status information
This makes it useful for monitoring household distribution boards, commercial electrical panels, workshops, equipment, and other three-phase applications.
WiFi & Tuya Smart Connectivity
The built-in WiFi functionality enables smart monitoring through the Tuya-compatible smart-home ecosystem.
Users can potentially check electrical information remotely using a compatible mobile application, making it easier to keep track of energy usage without being physically present at the electrical panel.
Smart functions may include:
- Remote electrical status monitoring
- Remote switching/control where supported
- Energy consumption monitoring
- Device status checking
- Smart-home integration through the Tuya platform
- Notifications or protection-status information where supported by the app/device configuration
Note: Exact app functions can vary according to firmware, Tuya platform configuration, and the specific version supplied.
Electrical Protection Functions
The KWS-306WF is designed not only as an energy monitor but also as a smart electrical protection device. Its protection functions can help respond to abnormal electrical conditions according to the device’s configured protection parameters.
The product listing indicates support for functions such as:
- Overvoltage protection
- Undervoltage protection
- Overcurrent protection
- Leakage protection
- Other configurable electrical protection functions depending on the device version
These functions can help reduce the risk associated with abnormal electrical conditions and provide an additional layer of protection within an electrical distribution system.
Up to 80A Current Capacity
The device is rated for applications up to 80A, making it suitable for a wide range of residential, commercial, and light-industrial electrical monitoring applications.
Always ensure that the device’s actual rating, wiring method, circuit protection, and installation conditions are appropriate for the intended load.

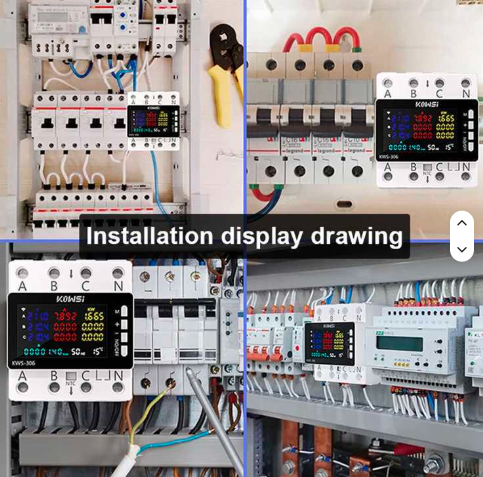

DIN Rail Installation
The KWS-306WF features a DIN rail mounting design, allowing it to be installed neatly inside compatible electrical distribution boards, consumer units, control cabinets, and electrical enclosures.
DIN rail installation provides:
- Space-efficient mounting
- Clean electrical-panel organization
- Easy integration into compatible distribution boards
- Convenient access for inspection and maintenance
Real-Time Electrical Visibility
By providing access to electrical measurements and consumption information, the KWS-306WF can help users identify changes in electrical demand and better understand how electricity is being consumed.
This can be particularly useful for:
- Monitoring high-power appliances
- Tracking equipment consumption
- Identifying unusual electrical loads
- Managing electricity usage
- Checking system status remotely
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | KWS-306WF |
| Type | Smart 3-Phase WiFi Energy Meter / Protection Switch |
| Rated Current | Up to 80A |
| System | 3 Phase |
| Operating Voltage | AC 85–290V |
| Connectivity | WiFi |
| Smart Platform | Tuya-compatible |
| Installation | DIN Rail |
| Monitoring | Electrical parameters / energy consumption |
| Protection | Overvoltage, undervoltage, overcurrent, leakage and other supported functions |
| Application | Residential, commercial and electrical-panel monitoring |
| Control | Smart/remote control functions where supported |
| Model/Version | G53 |
Suitable Applications
The KWS-306WF can be used in a variety of electrical monitoring and smart-control applications, including:
- Residential three-phase electrical systems
- Offices and commercial buildings
- Workshops and light industrial installations
- Shops and small businesses
- Electrical distribution panels
- Equipment and machinery monitoring
- Energy-management installations
- Smart-home electrical systems
- Electricity consumption monitoring
- Three-phase load monitoring
Benefits of Using the KWS-306WF
Remote Monitoring: Check supported electrical parameters through a compatible Tuya application without needing to access the distribution panel directly.
Smart Energy Management: Monitor electricity consumption and gain greater visibility into how electrical loads use power.
Protection & Monitoring in One Device: Combines smart monitoring with configurable electrical protection functions in a single DIN-rail unit.
Compact Installation: The DIN-rail format allows the device to be integrated into suitable electrical distribution boards and control cabinets.
Three-Phase Compatibility: Designed for monitoring three-phase electrical systems, making it suitable for applications where a single-phase smart meter is insufficient.
Convenient Smart-Home Integration: Tuya compatibility can allow integration with other compatible smart-home devices and automation features, subject to the specific device firmware and Tuya configuration.
Installation & Safety
The KWS-306WF is intended for installation in an appropriate electrical distribution system. Installation should be performed by a qualified electrician or suitably competent professional.
Before installation:
- Confirm the electrical system voltage and phase configuration.
- Verify that the device’s current and voltage ratings are suitable for the intended application.
- Switch off and isolate the electrical supply before installation.
- Install the device correctly on the appropriate DIN rail.
- Follow the supplied wiring diagram and manufacturer’s instructions.
- Confirm all connections are secure before energizing the circuit.
- Configure the WiFi/Tuya functions after the electrical installation has been safely completed.
Do not exceed the product’s rated electrical specifications. Proper upstream circuit protection should also be provided as required by the applicable electrical regulations and installation design.
Why Choose the KWS-306WF?
The KWS-306WF 80A 3 Phase WiFi Tuya Energy Meter provides a practical combination of three-phase electrical monitoring, smart connectivity, energy management, and electrical protection.
Instead of relying solely on traditional meters or manually checking an electrical panel, users can gain convenient access to supported electrical information through a connected smart system. Its 80A capacity, AC 85–290V operating range, DIN-rail design, three-phase configuration, WiFi connectivity, and Tuya compatibility make it a versatile option for smart electrical monitoring and protection applications.
Package Contents
- 1 × KWS-306WF Smart 3-Phase WiFi Energy Meter
- Installation accessories, where supplied
- User documentation, where supplied
Important: Package contents, wiring configuration, protection thresholds, communication features, dimensions, and supported Tuya functions may vary by manufacturer revision or seller version. Please verify the exact specification and wiring diagram supplied with the product before installation.
Product Summary
Product: KWS-306WF Smart Energy Meter
Current Rating: Up to 80A
Phases: 3 Phase
Voltage: AC 85–290V
Connectivity: WiFi
Platform: Tuya-compatible
Installation: DIN Rail
Functions: Energy monitoring, electrical parameter monitoring, smart control and protection functions
Applications: Homes, offices, shops, workshops, commercial buildings, distribution boards and other compatible three-phase electrical systems
